OAuth 2.0 Single Sign-On Configuration

Tier: Server

Stirling PDF supports Single Sign-On (SSO) using OAuth 2.0 OpenID Connect (OIDC). This allows users to log in using accounts from external providers such as Google, GitHub, Keycloak, Authentik, and others.

Looking for SAML 2.0 SSO? See SAML SSO Configuration (Enterprise tier).

Prerequisites#

Before configuring OAuth 2.0 SSO, ensure you have:

  • [ ] Stirling PDF with login enabled (security.enableLogin: true)
  • [ ] Valid license for the Server tier or higher
  • [ ] An OAuth 2.0 provider account (Google, GitHub, Keycloak, etc.)
  • [ ] Registered OAuth application with your provider
  • [ ] OAuth Client ID and Client Secret from your provider
  • [ ] Public HTTPS URL configured with system.backendUrl set to your public backend API URL (often same as frontend, verify https://your-domain.com/api/v1/info/status is accessible)
  • [ ] Callback URL added to provider: https://your-domain.com/login/oauth2/code/<provider>

Tip: Start with loginMethod: all during initial setup to allow both username/password and OAuth login. This ensures you can always access the admin account if SSO configuration needs adjustment.

Setup Guide#

Step 1: Configure Login Settings#

Enable login and set the login method to allow both standard and OAuth authentication during initial setup.

yaml
security:
  enableLogin: true
  loginMethod: all  # Allows both username/password and OAuth login
bash
SECURITY_ENABLELOGIN=true
SECURITY_LOGINMETHOD=all

Login Method Options:

  • all: Enables all login methods (username/password + OAuth 2)
  • normal: Username/password only
  • oauth2: OAuth 2 SSO only (disables username/password login)
  • saml2: SAML 2 SSO only (Enterprise tier)

Step 2: Create Initial Admin Account#

Before enabling OAuth, create an initial admin account using one of these methods:

Option A: Use initialLogin credentials (recommended for first setup)

yaml
security:
  initialLogin:
    username: 'admin'
    password: 'yourSecurePassword123'
bash
SECURITY_INITIALLOGIN_USERNAME=admin
SECURITY_INITIALLOGIN_PASSWORD=yourSecurePassword123

Option B: Create admin manually

  1. Access Stirling PDF with OAuth disabled
  2. Create an admin user through the UI
  3. Then enable OAuth

Step 3: Configure OAuth Provider#

Set security.oauth2.enabled to true and configure your chosen provider.

yaml
security:
  oauth2:
    enabled: true
    client:
      google:
        clientId: <YOUR_CLIENT_ID>
        clientSecret: <YOUR_CLIENT_SECRET>
        scopes: email, profile
        useAsUsername: email
    provider: google
    autoCreateUser: true
    blockRegistration: false
bash
SECURITY_OAUTH2_ENABLED=true
SECURITY_OAUTH2_CLIENT_GOOGLE_CLIENTID=<YOUR_CLIENT_ID>
SECURITY_OAUTH2_CLIENT_GOOGLE_CLIENTSECRET=<YOUR_CLIENT_SECRET>
SECURITY_OAUTH2_CLIENT_GOOGLE_SCOPES=email, profile
SECURITY_OAUTH2_CLIENT_GOOGLE_USEASUSERNAME=email
SECURITY_OAUTH2_PROVIDER=google
SECURITY_OAUTH2_AUTOCREATEUSER=true
SECURITY_OAUTH2_BLOCKREGISTRATION=false

Provider Setup:

  1. Go to Google Cloud Console
  2. Create a new project or select existing
  3. Enable Google+ API
  4. Create OAuth 2.0 credentials (Web application)
  5. Add authorized redirect URI: https://your-domain.com/login/oauth2/code/google
  6. Copy Client ID and Client Secret
yaml
security:
  oauth2:
    enabled: true
    client:
      github:
        clientId: <YOUR_CLIENT_ID>
        clientSecret: <YOUR_CLIENT_SECRET>
        scopes: read:user
        useAsUsername: login
    provider: github
    autoCreateUser: true
    blockRegistration: false
bash
SECURITY_OAUTH2_ENABLED=true
SECURITY_OAUTH2_CLIENT_GITHUB_CLIENTID=<YOUR_CLIENT_ID>
SECURITY_OAUTH2_CLIENT_GITHUB_CLIENTSECRET=<YOUR_CLIENT_SECRET>
SECURITY_OAUTH2_CLIENT_GITHUB_SCOPES=read:user
SECURITY_OAUTH2_CLIENT_GITHUB_USEASUSERNAME=login
SECURITY_OAUTH2_PROVIDER=github
SECURITY_OAUTH2_AUTOCREATEUSER=true
SECURITY_OAUTH2_BLOCKREGISTRATION=false

Provider Setup:

  1. Go to GitHub Developer Settings
  2. Create new OAuth App
  3. Set Authorization callback URL: https://your-domain.com/login/oauth2/code/github
  4. Copy Client ID and generate Client Secret
yaml
security:
  oauth2:
    enabled: true
    issuer: https://your-keycloak.com/realms/your-realm
    clientId: <YOUR_CLIENT_ID>
    clientSecret: <YOUR_CLIENT_SECRET>
    scopes: openid, profile, email
    useAsUsername: preferred_username
    provider: keycloak
    autoCreateUser: true
    blockRegistration: false
bash
SECURITY_OAUTH2_ENABLED=true
SECURITY_OAUTH2_ISSUER=https://your-keycloak.com/realms/your-realm
SECURITY_OAUTH2_CLIENTID=<YOUR_CLIENT_ID>
SECURITY_OAUTH2_CLIENTSECRET=<YOUR_CLIENT_SECRET>
SECURITY_OAUTH2_SCOPES=openid, profile, email
SECURITY_OAUTH2_USEASUSERNAME=preferred_username
SECURITY_OAUTH2_PROVIDER=keycloak
SECURITY_OAUTH2_AUTOCREATEUSER=true
SECURITY_OAUTH2_BLOCKREGISTRATION=false

Provider Setup:

  1. Access your Keycloak admin console
  2. Select your realm
  3. Create new client (OpenID Connect)
  4. Set Valid Redirect URIs: https://your-domain.com/login/oauth2/code/keycloak
  5. Enable "Client authentication" for confidential access
  6. Copy Client ID and Client Secret from Credentials tab
yaml
security:
  oauth2:
    enabled: true
    issuer: https://your-authentik.com/application/o/stirling-pdf/
    clientId: <YOUR_CLIENT_ID>
    clientSecret: <YOUR_CLIENT_SECRET>
    scopes: openid, profile, email
    useAsUsername: preferred_username
    provider: authentik
    autoCreateUser: true
    blockRegistration: false
bash
SECURITY_OAUTH2_ENABLED=true
SECURITY_OAUTH2_ISSUER=https://your-authentik.com/application/o/stirling-pdf/
SECURITY_OAUTH2_CLIENTID=<YOUR_CLIENT_ID>
SECURITY_OAUTH2_CLIENTSECRET=<YOUR_CLIENT_SECRET>
SECURITY_OAUTH2_SCOPES=openid, profile, email
SECURITY_OAUTH2_USEASUSERNAME=preferred_username
SECURITY_OAUTH2_PROVIDER=authentik
SECURITY_OAUTH2_AUTOCREATEUSER=true
SECURITY_OAUTH2_BLOCKREGISTRATION=false

Provider Setup:

  1. Create new Provider (OAuth2/OpenID)
  2. Create new Application
  3. Set Redirect URIs: https://your-domain.com/login/oauth2/code/authentik
  4. Copy Client ID and Client Secret
yaml
security:
  oauth2:
    enabled: true
    issuer: <YOUR_ISSUER_URI>
    clientId: <YOUR_CLIENT_ID>
    clientSecret: <YOUR_CLIENT_SECRET>
    scopes: openid, profile, email
    useAsUsername: email
    provider: <PROVIDER_NAME>
    autoCreateUser: true
    blockRegistration: false
bash
SECURITY_OAUTH2_ENABLED=true
SECURITY_OAUTH2_ISSUER=<YOUR_ISSUER_URI>
SECURITY_OAUTH2_CLIENTID=<YOUR_CLIENT_ID>
SECURITY_OAUTH2_CLIENTSECRET=<YOUR_CLIENT_SECRET>
SECURITY_OAUTH2_SCOPES=openid, profile, email
SECURITY_OAUTH2_USEASUSERNAME=email
SECURITY_OAUTH2_PROVIDER=<PROVIDER_NAME>
SECURITY_OAUTH2_AUTOCREATEUSER=true
SECURITY_OAUTH2_BLOCKREGISTRATION=false

Requirements:

  • Provider must support OpenID Connect Discovery
  • Must expose /.well-known/openid-configuration endpoint

Step 4: Configure Callback URL#

When registering your application with the OAuth provider, use this callback URL format:

https://<your-domain>/login/oauth2/code/<provider>

Understanding the Provider Slug:

The <provider> portion of the callback URL must exactly match your security.oauth2.provider configuration value:

yaml
security:
  oauth2:
    provider: authentik  # This becomes part of the callback URL

With the above configuration, your callback URL becomes:

https://your-domain.com/login/oauth2/code/authentik

Examples:

  • Google: https://stirling.example.com/login/oauth2/code/google
  • GitHub: https://stirling.example.com/login/oauth2/code/github
  • Keycloak: https://stirling.example.com/login/oauth2/code/keycloak
  • Custom provider: https://stirling.example.com/login/oauth2/code/mycompany

Important: If the provider slug in the callback URL doesn't match your security.oauth2.provider value, OAuth login will fail with redirect errors.

Tip: For generic OIDC providers (not Google/GitHub/Keycloak), you can set provider to any lowercase alphanumeric value that makes sense for your organization.

Step 5: Test OAuth Login and Promote User#

  1. Restart Stirling PDF
  2. Test OAuth login in an incognito/private browser window
  3. Verify you can log in with your OAuth provider
  4. Log in with your initial admin account (username/password)
  5. Go to Settings → User Management
  6. Find the OAuth user account (created during test login)
  7. Change role to Admin

Step 6: (Optional) Switch to SSO-Only Mode#

Once you've verified OAuth works and promoted an OAuth user to admin, you can disable username/password login:

yaml
security:
  loginMethod: oauth2  # Disables username/password login
bash
SECURITY_LOGINMETHOD=oauth2

Important: If you set loginMethod: oauth2 before creating an OAuth admin user, you will only be able to log in via OAuth, and all new OAuth users will have regular user permissions. Keep loginMethod: all until you have at least one OAuth user with admin privileges.

Configuration Reference#

Required Properties#

Property Description Example
security.oauth2.enabled Enable OAuth 2 login true
security.oauth2.clientId Client ID from your OAuth provider stirling-pdf-client
security.oauth2.clientSecret Client Secret from your OAuth provider your-secret-key
security.oauth2.provider Provider name google, github, keycloak, authentik

Optional Properties#

Property Description Default Example
security.oauth2.issuer OIDC issuer URL (required for generic providers, must support /.well-known/openid-configuration) - https://keycloak.example.com/realms/myrealm
security.oauth2.autoCreateUser Auto-create users on first login true false
security.oauth2.blockRegistration Block new user registration, only allow pre-registered users false true
security.oauth2.scopes Space or comma-separated list of OAuth scopes Provider-specific openid, profile, email
security.oauth2.useAsUsername Claim to use as username (options depend on provider) Provider-specific email, preferred_username, login

Provider-Specific Configuration#

Named providers (Google, GitHub, Keycloak):

yaml
oauth2:
  client:
    google:  # or github, keycloak
      clientId: ...
      clientSecret: ...

Generic providers (Authentik, custom OIDC):

yaml
oauth2:
  issuer: <ISSUER_URI>  # Must support OIDC discovery
  clientId: ...
  clientSecret: ...

Username Claim Options#

Google:

GitHub:

Keycloak/Generic OIDC:

  • email, preferred_username, nickname, name

Advanced Configuration#

Backend URL Configuration#

If your Stirling PDF backend is accessible at a different URL than the frontend, configure the backend URL:

yaml
system:
  backendUrl: https://stirling-api.example.com
bash
SYSTEM_BACKENDURL=https://stirling-api.example.com

Verify the backend URL is correct by checking that https://your-domain.com/api/v1/info/status is accessible.

Auto-Login Feature#

Tier: Server

Automatically redirect users to OAuth login page, bypassing the Stirling PDF login screen.

yaml
premium:
  proFeatures:
    ssoAutoLogin: true
bash
PREMIUM_PROFEATURES_SSOAUTOLOGIN=true

Auto-login Activation Requirements:

Auto-login only triggers when ALL of the following conditions are met:

  1. ssoAutoLogin is enabled (as configured above)
  2. loginMethod is NOT 'all' and NOT 'normal' (i.e., SSO-only mode required)
  3. Exactly one OAuth provider is configured

Behavior:

  • When all conditions are met: Users are automatically redirected to OAuth provider login
  • When conditions are not met: Standard login page is displayed
  • If the SSO redirect fails, the browser stops auto-redirecting for the current session so the login page stays reachable
  • After logging out, auto-redirect is suppressed for that session so you can sign in as a different user

User Interface#

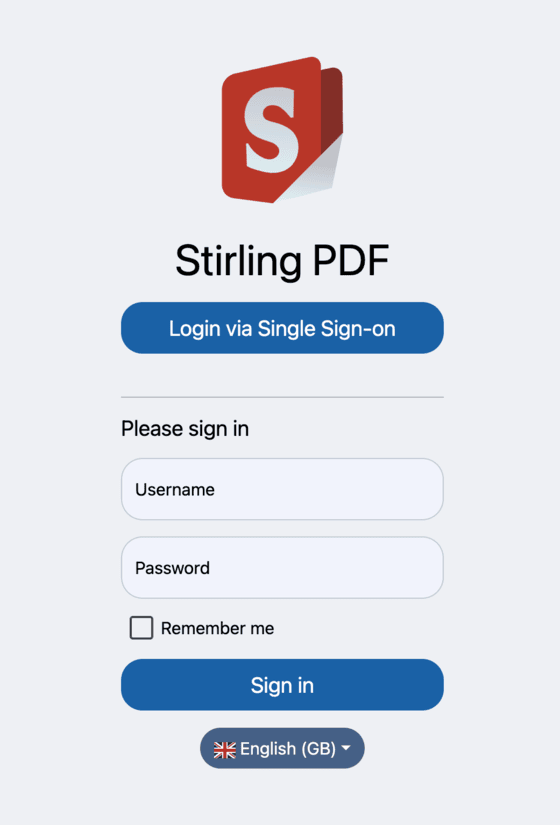

Once OAuth is configured, users will see the SSO login button:

login-page.png sso-login-option.png

Troubleshooting#

Common Issues#

"OAuth2 authentication error"

  • Verify callback URL matches exactly (including provider slug)
  • Check client ID and secret are correct
  • Ensure provider allows the configured redirect URI
  • Confirm security.oauth2.provider matches the provider slug in callback URL

"Invalid issuer"

  • Confirm issuer URL is correct
  • Test https://your-issuer/.well-known/openid-configuration returns valid JSON
  • Check network connectivity from Stirling PDF container to provider

"User not created"

  • Set autoCreateUser: true
  • Check blockRegistration is false or user is pre-registered
  • Verify license allows user count

Users redirected to wrong URL

  • Verify system.backendUrl is configured correctly
  • Test that https://your-domain.com/api/v1/info/status is accessible
  • Check provider's registered redirect URIs match your domain

Debug Logging#

Enable OAuth debug logging to troubleshoot authentication issues.

yaml
logging:
  level:
    org.springframework.security.oauth2: DEBUG
bash
LOGGING_LEVEL_ORG_SPRINGFRAMEWORK_SECURITY_OAUTH2=DEBUG

Logging the Provider's Claims ("Attribute value for email cannot be null")#

If login fails with "Attribute value for email cannot be null" (common with ADFS and Azure AD), the provider is not returning the claim named by useAsUsername. Enable security.oauth2.debugLogging to log the full ID-token / UserInfo claim set and the resolved username, so you can see exactly which claims the provider sends and pick the right useAsUsername value.

yaml
security:
  oauth2:
    debugLogging: true
bash
SECURITY_OAUTH2_DEBUGLOGGING=true

The claims are logged at INFO level on each login (and again at ERROR level when the username attribute cannot be resolved).

⚠️ Disable debugLogging again as soon as you are done. It writes personally identifiable information (such as sub, email, and name) to the application logs.

Known Limitations#

  • OAuth users must be manually promoted to admin role after first login
  • Provider discovery requires /.well-known/openid-configuration endpoint support
  • Auto-login feature requires the Server tier (or higher)

See Also#

Edit this page on GitHub
